openPMD::MPIBenchmarkReport< Duration > Struct Template Reference

The report for a single benchmark produced by <openPMD/benchmark/mpi/MPIBenchmark>. More...

#include <MPIBenchmarkReport.hpp>

Public Types
enum	Selector {   RANK = 0 , COMPRESSION , COMPRESSION_LEVEL , BACKEND ,   NRANKS , DTYPE , ITERATIONS }

Public Member Functions
	MPIBenchmarkReport (MPI_Comm)
void	addReport (int rootThread, std::string jsonConfig, std::string extension, int threadSize, Datatype dt, Series::IterationIndex_t iterations, std::pair< Duration, Duration > const &report)
	Add results for a certain compression strategy and level.
std::pair< Duration, Duration >	getReport (int rank, std::string jsonConfig, std::string extension, int threadSize, Datatype dt, Series::IterationIndex_t iterations)
	Retrieve the time measured for a certain compression strategy.

Public Attributes
MPI_Comm	communicator

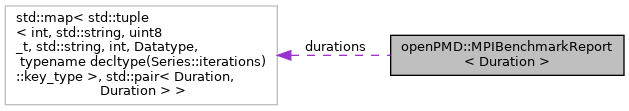

std::map< std::tuple< int, std::string, std::string, int, Datatype, Series::IterationIndex_t >, std::pair< Duration, Duration > >	durations
	Time needed for writing and reading per compression strategy and level.

Detailed Description

template<typename Duration>
struct openPMD::MPIBenchmarkReport< Duration >

The report for a single benchmark produced by <openPMD/benchmark/mpi/MPIBenchmark>.

Template Parameters

Duration

Datatype to be used for storing a time interval.

Member Function Documentation

addReport()

template<typename Duration>

void openPMD::MPIBenchmarkReport< Duration >::addReport	(	int	rootThread,
		std::string	jsonConfig,
		std::string	extension,
		int	threadSize,
		Datatype	dt,
		Series::IterationIndex_t	iterations,
		std::pair< Duration, Duration > const &	report )

Add results for a certain compression strategy and level.

Parameters

rootThread	The MPI rank which will collect the data.
jsonConfig	Compression strategy.
extension	The openPMD filename extension.
threadSize	The MPI size.
dt	The openPMD datatype.
iterations	The number of iterations per compression strategy.
report	A pair of write and read time measurements.

getReport()

template<typename Duration>

std::pair< Duration, Duration > openPMD::MPIBenchmarkReport< Duration >::getReport	(	int	rank,
		std::string	jsonConfig,
		std::string	extension,
		int	threadSize,
		Datatype	dt,
		Series::IterationIndex_t	iterations )

Retrieve the time measured for a certain compression strategy.

Parameters

rank	Which MPI rank's duration results to retrieve.
jsonConfig	Compression strategy.
extension	The openPMD filename extension.
threadSize	The MPI size.
dt	The openPMD datatype.
iterations	The number of iterations per compression strategy.

Returns

A pair of write and read time measurements.

---

The documentation for this struct was generated from the following file:

• /tmp/tmp.NhLRcLhrNZ/openPMD-api/include/openPMD/benchmark/mpi/MPIBenchmarkReport.hpp
