openPMD::chunk_assignment::Strategy Struct Reference

Interface for a chunk distribution strategy. More...

#include <ChunkInfo.hpp>

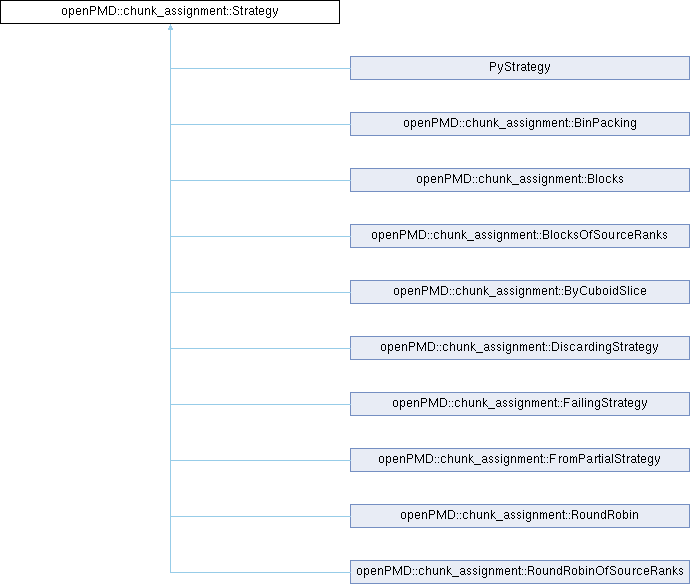

Inheritance diagram for openPMD::chunk_assignment::Strategy:

Public Member Functions
Assignment	assign (ChunkTable chunkTable, RankMeta const &in, RankMeta const &out, size_t my_rank, size_t num_ranks)
	Assign chunks to be loaded to reading processes.
virtual Assignment	assign (PartialAssignment partialAssignment, RankMeta const &in, RankMeta const &out, size_t my_rank, size_t num_ranks)=0
	Assign chunks to be loaded to reading processes.
virtual std::unique_ptr< Strategy >	clone () const =0

Detailed Description

Interface for a chunk distribution strategy.

Used for implementing algorithms that read a ChunkTable as produced by BaseRecordComponent::availableChunks() and produce as result a ChunkTable that guides data sinks on how to load data into reading processes.

Member Function Documentation

assign() [1/2]

Assignment openPMD::chunk_assignment::Strategy::assign	(	ChunkTable	chunkTable,
		RankMeta const &	in,
		RankMeta const &	out,
		size_t	my_rank,
		size_t	num_ranks )

Assign chunks to be loaded to reading processes.

Parameters

chunkTable	Chunk table obtained by BaseRecordComponent::availableChunks().
in	Meta information on writing processes, e.g. hostnames.
out	Meta information on reading processes, e.g. hostnames.
my_rank	Rank identifier for the current process. Will be considered by some distribution strategies that may be called for only a subselection of the data space (e.g. for distributing data within processes on the same compute node in a cluster).
num_ranks	Number of processes among which chunks are to be distributed. Will be considered by some distribution strategies that may be called for only a subselection of the data space (e.g. for distributing data within processes on the same compute node in a cluster).

Returns

A table that assigns chunks to reading processes. Chunks are sorted by the destination process ID (MPI rank). Distribution strategies will in general only need to fill the chunks for the current (calling) process ID, but some (such as RoundRobin) will fill the information for other processes as well.

assign() [2/2]

virtual Assignment openPMD::chunk_assignment::Strategy::assign ( PartialAssignment partialAssignment, RankMeta const & in, RankMeta const & out, size_t my_rank, size_t num_ranks )

pure virtual

Assign chunks to be loaded to reading processes.

To be defined by implementors.

Parameters

partialAssignment	Two chunktables, one of unassigned chunks and one of chunks that might have already been assigned previously. Merge the unassigned chunks into the partially assigned table.
in	Meta information on writing processes, e.g. hostnames.
out	Meta information on reading processes, e.g. hostnames.
my_rank	Rank identifier for the current process. Will be considered by some distribution strategies that may be called for only a subselection of the data space (e.g. for distributing data within processes on the same compute node in a cluster).
num_ranks	Number of processes among which chunks are to be distributed. Will be considered by some distribution strategies that may be called for only a subselection of the data space (e.g. for distributing data within processes on the same compute node in a cluster).

Returns

A table that assigns chunks to reading processes. Chunks are sorted by the destination process ID (MPI rank). Distribution strategies will in general only need to fill the chunks for the current (calling) process ID, but some (such as RoundRobin) will fill the information for other processes as well.

Implemented in openPMD::chunk_assignment::BinPacking, openPMD::chunk_assignment::Blocks, openPMD::chunk_assignment::BlocksOfSourceRanks, openPMD::chunk_assignment::ByCuboidSlice, openPMD::chunk_assignment::DiscardingStrategy, openPMD::chunk_assignment::FailingStrategy, openPMD::chunk_assignment::FromPartialStrategy, openPMD::chunk_assignment::RoundRobin, openPMD::chunk_assignment::RoundRobinOfSourceRanks, and PyStrategy.

---

The documentation for this struct was generated from the following files:

• /tmp/tmp.NhLRcLhrNZ/openPMD-api/include/openPMD/ChunkInfo.hpp
• /tmp/tmp.NhLRcLhrNZ/openPMD-api/src/ChunkInfo.cpp
