Logical compilation of data from one snapshot (e.g. More...

#include <Iteration.hpp>

Inheritance diagram for openPMD::Iteration:

[legend]

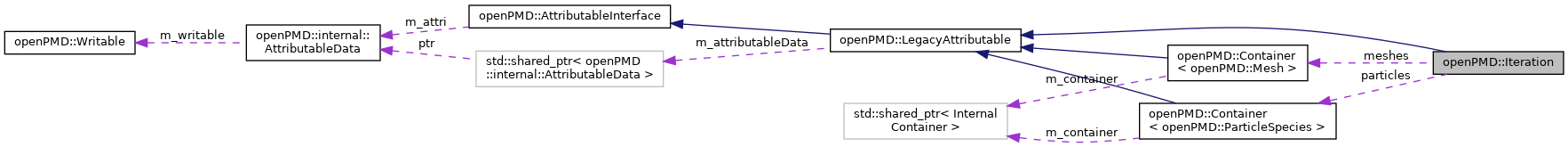

Collaboration diagram for openPMD::Iteration:

[legend]

Public Member Functions
	Iteration (Iteration const &)=default

Iteration &	operator= (Iteration const &)=default

template<typename T >
T	time () const

template<typename T >
Iteration &	setTime (T newTime)
	Set the global reference time for this iteration. More...

template<typename T >
T	dt () const

template<typename T >
Iteration &	setDt (T newDt)
	Set the time step used to reach this iteration. More...

double	timeUnitSI () const

Iteration &	setTimeUnitSI (double newTimeUnitSI)
	Set the conversion factor to convert time and dt to seconds. More...

Iteration &	close (bool flush=true)
	Close an iteration. More...

Iteration &	open ()
	Open an iteration. More...

bool	closed () const
	Has the iteration been closed? A closed iteration may not (yet) be reopened. More...

bool	closedByWriter () const
	Has the iteration been closed by the writer? Background: Upon calling Iteration::close(), the openPMD API will add metadata to the iteration in form of an attribute, indicating that the iteration has indeed been closed. More...

Public Member Functions inherited from openPMD::AttributableInterface
Attribute	getAttribute (std::string const &key) const
	Retrieve value of Attribute stored with provided key. More...

bool	deleteAttribute (std::string const &key)
	Remove Attribute of provided value both logically and physically. More...

std::vector< std::string >	attributes () const
	List all currently stored Attributes' keys. More...

size_t	numAttributes () const
	Count all currently stored Attributes. More...

bool	containsAttribute (std::string const &key) const
	Check whether am Attribute with a given key exists. More...

std::string	comment () const
	Retrieve a user-supplied comment associated with the object. More...

AttributableInterface &	setComment (std::string const &comment)
	Populate Attribute corresponding to a comment with the user-supplied comment. More...

void	seriesFlush ()
	Flush the corresponding Series object. More...

MyPath	myPath () const
	The path to this object within its containing Series. More...

template<typename T >
bool	setAttribute (std::string const &key, T value)
	Populate Attribute of provided name with provided value. More...

bool	setAttribute (std::string const &key, char const value[])

Public Attributes
Container< Mesh >	meshes

Container< ParticleSpecies >	particles

Friends
template<typename T , typename T_key , typename T_container >
class	Container

class	SeriesInterface

class	WriteIterations

class	SeriesIterator

Additional Inherited Members
Protected Types inherited from openPMD::AttributableInterface
enum	ReadMode { IgnoreExisting, OverrideExisting, FullyReread }

Protected Member Functions inherited from openPMD::AttributableInterface
	AttributableInterface (internal::AttributableData *)

template<typename T >
	AttributableInterface (T *attri)

const internal::SeriesInternal &	retrieveSeries () const

internal::SeriesInternal &	retrieveSeries ()

void	seriesFlush (FlushLevel)

void	flushAttributes ()

void	readAttributes (ReadMode)

template<typename T >
T	readFloatingpoint (std::string const &key) const
	Retrieve the value of a floating point Attribute of user-defined precision with ensured type-safety. More...

template<typename T >
std::vector< T >	readVectorFloatingpoint (std::string const &key) const
	Retrieve a vector of values of a floating point Attributes of user-defined precision with ensured type-safety. More...

AbstractIOHandler *	IOHandler ()

const AbstractIOHandler *	IOHandler () const

Writable *&	parent ()

const Writable *	parent () const

Writable &	writable ()

const Writable &	writable () const

internal::AttributableData &	get ()

const internal::AttributableData &	get () const

bool	dirty () const

bool &	dirty ()

bool	written () const

bool &	written ()

const Iteration &	containingIteration () const
	Returns the corresponding Iteration. More...

Iteration &	containingIteration ()

Protected Attributes inherited from openPMD::LegacyAttributable
std::shared_ptr< internal::AttributableData >	m_attributableData

Protected Attributes inherited from openPMD::AttributableInterface
internal::AttributableData *	m_attri = nullptr

Detailed Description

Logical compilation of data from one snapshot (e.g.

a single simulation cycle).

See also: https://github.com/openPMD/openPMD-standard/blob/latest/STANDARD.md#required-attributes-for-the-basepath

Member Function Documentation

◆ close()

Iteration & openPMD::Iteration::close ( bool flush = true )

Close an iteration.

No further (backend-propagating) accesses may be performed on this iteration. A closed iteration may not (yet) be reopened.

With an MPI-parallel series, close is an MPI-collective operation.

Returns: Reference to iteration.

◆ closed()

bool openPMD::Iteration::closed ( ) const

Has the iteration been closed? A closed iteration may not (yet) be reopened.

Returns: Whether the iteration has been closed.

◆ closedByWriter()

bool openPMD::Iteration::closedByWriter ( ) const

Has the iteration been closed by the writer? Background: Upon calling Iteration::close(), the openPMD API will add metadata to the iteration in form of an attribute, indicating that the iteration has indeed been closed.

Useful mainly in streaming context when a reader inquires from a writer that it is done writing.

Returns: Whether the iteration has been explicitly closed (yet) by the writer.

◆ dt()

template<typename T >

T openPMD::Iteration::dt

inline

Template Parameters

T	Floating point type of user-selected precision (e.g. float, double).

Returns: Time step used to reach this iteration.

◆ open()

Iteration & openPMD::Iteration::open ( )

Open an iteration.

Explicitly open an iteration. Usually, file-open operations are delayed until the first load/storeChunk operation is flush-ed. In parallel contexts where it is know that such a first access needs to be run non-collectively, one can explicitly open an iteration through this collective call. Also necessary when using defer_iteration_parsing. The Streaming API (i.e. Series::readIterations()) will call this method implicitly and users need not call it.

Returns: Reference to iteration.

◆ setDt()

template<typename T >

template Iteration & openPMD::Iteration::setDt< long double > ( T newDt )

Set the time step used to reach this iteration.

Template Parameters

T	Floating point type of user-selected precision (e.g. float, double).

Parameters

newDt Time step used to reach this iteration.

Returns: Reference to modified iteration.

◆ setTime()

template<typename T >

template Iteration & openPMD::Iteration::setTime< long double > ( T newTime )

Set the global reference time for this iteration.

Template Parameters

T	Floating point type of user-selected precision (e.g. float, double).

Parameters

newTime Global reference time for this iteration.

Returns: Reference to modified iteration.

◆ setTimeUnitSI()

Iteration & openPMD::Iteration::setTimeUnitSI ( double newTimeUnitSI )

Set the conversion factor to convert time and dt to seconds.

Parameters

newTimeUnitSI new value for timeUnitSI

Returns: Reference to modified iteration.

◆ time()

template<typename T >

T openPMD::Iteration::time

inline

Template Parameters

T	Floating point type of user-selected precision (e.g. float, double).

Returns: Global reference time for this iteration.

◆ timeUnitSI()

double openPMD::Iteration::timeUnitSI ( ) const

Returns: Conversion factor to convert time and dt to seconds.

The documentation for this class was generated from the following files:

/tmp/tmp.7iNmvGSbic/openPMD-api/include/openPMD/Iteration.hpp
/tmp/tmp.7iNmvGSbic/openPMD-api/src/Iteration.cpp
