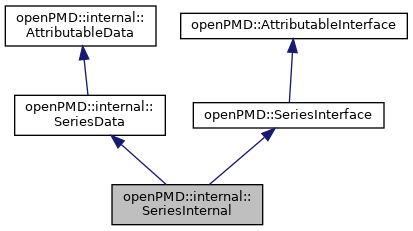

Inheritance diagram for openPMD::internal::SeriesInternal:
Collaboration diagram for openPMD::internal::SeriesInternal:
Public Member Functions | |
| SeriesInternal (std::string const &filepath, Access at, MPI_Comm comm, std::string const &options="{}") | |
| SeriesInternal (std::string const &filepath, Access at, std::string const &options="{}") | |
 Public Member Functions inherited from openPMD::internal::SeriesData | |
| SeriesData (SeriesData const &)=delete | |
| SeriesData (SeriesData &&)=delete | |
| SeriesData & | operator= (SeriesData const &)=delete |
| SeriesData & | operator= (SeriesData &&)=delete |
| Public Member Functions inherited from openPMD::internal::AttributableData | |
| AttributableData (AttributableData const &)=delete | |
| AttributableData (AttributableData &&)=delete | |
| AttributableData & | operator= (AttributableData const &)=delete |
| AttributableData & | operator= (AttributableData &&)=delete |
| Public Member Functions inherited from openPMD::SeriesInterface | |
| std::string | openPMD () const |
| SeriesInterface & | setOpenPMD (std::string const &openPMD) |
| Set the version of the enforced openPMD standard. More... | |
| uint32_t | openPMDextension () const |
| SeriesInterface & | setOpenPMDextension (uint32_t openPMDextension) |
| Set a 32-bit mask of applied extensions to the openPMD standard. More... | |
| std::string | basePath () const |
| SeriesInterface & | setBasePath (std::string const &basePath) |
| Set the common prefix for all data sets and sub-groups of a specific iteration. More... | |
| std::string | meshesPath () const |
| SeriesInterface & | setMeshesPath (std::string const &meshesPath) |
Set the path to mesh records, relative(!) to basePath. More... | |
| std::string | particlesPath () const |
| SeriesInterface & | setParticlesPath (std::string const &particlesPath) |
Set the path to groups for each particle species, relative(!) to basePath. More... | |
| std::string | author () const |
| SeriesInterface & | setAuthor (std::string const &author) |
| Indicate the author and contact for the information in the file. More... | |
| std::string | software () const |
| SeriesInterface & | setSoftware (std::string const &newName, std::string const &newVersion=std::string("unspecified")) |
| Indicate the software/code/simulation that created the file. More... | |
| std::string | softwareVersion () const |
| SeriesInterface & | setSoftwareVersion (std::string const &softwareVersion) |
| Indicate the version of the software/code/simulation that created the file. More... | |
| std::string | date () const |
| SeriesInterface & | setDate (std::string const &date) |
| Indicate the date of creation. More... | |
| std::string | softwareDependencies () const |
| SeriesInterface & | setSoftwareDependencies (std::string const &newSoftwareDependencies) |
| Indicate dependencies of software that were used to create the file. More... | |
| std::string | machine () const |
| SeriesInterface & | setMachine (std::string const &newMachine) |
| Indicate the machine or relevant hardware that created the file. More... | |
| IterationEncoding | iterationEncoding () const |
| SeriesInterface & | setIterationEncoding (IterationEncoding iterationEncoding) |
| Set the encoding style for multiple iterations in this series. More... | |
| std::string | iterationFormat () const |
| SeriesInterface & | setIterationFormat (std::string const &iterationFormat) |
| Set a pattern describing how to access single iterations in the raw file. More... | |
| std::string | name () const |
| SeriesInterface & | setName (std::string const &name) |
| Set the pattern for file names. More... | |
| std::string | backend () const |
| The currently used backend. More... | |
| void | flush () |
| Execute all required remaining IO operations to write or read data. | |
| Public Member Functions inherited from openPMD::AttributableInterface | |
| Attribute | getAttribute (std::string const &key) const |
| Retrieve value of Attribute stored with provided key. More... | |
| bool | deleteAttribute (std::string const &key) |
| Remove Attribute of provided value both logically and physically. More... | |
| std::vector< std::string > | attributes () const |
| List all currently stored Attributes' keys. More... | |
| size_t | numAttributes () const |
| Count all currently stored Attributes. More... | |
| bool | containsAttribute (std::string const &key) const |
| Check whether am Attribute with a given key exists. More... | |
| std::string | comment () const |
| Retrieve a user-supplied comment associated with the object. More... | |
| AttributableInterface & | setComment (std::string const &comment) |
| Populate Attribute corresponding to a comment with the user-supplied comment. More... | |
| void | seriesFlush () |
| Flush the corresponding Series object. More... | |
| MyPath | myPath () const |
| The path to this object within its containing Series. More... | |
| template<typename T > | |
| bool | setAttribute (std::string const &key, T value) |
| Populate Attribute of provided name with provided value. More... | |
| bool | setAttribute (std::string const &key, char const value[]) |
Friends | |
| struct | SeriesShared |
| class | openPMD::Iteration |
| class | openPMD::Series |
| class | openPMD::Writable |
Additional Inherited Members | |
| Public Types inherited from openPMD::internal::AttributableData | |
| using | A_MAP = std::map< std::string, Attribute > |
| Public Attributes inherited from openPMD::internal::SeriesData | |
| Container< Iteration, uint64_t > | iterations {} |
| auxiliary::Option< WriteIterations > | m_writeIterations |
| auxiliary::Option< std::string > | m_overrideFilebasedFilename |
| std::string | m_name |
| std::string | m_filenamePrefix |
| std::string | m_filenamePostfix |
| int | m_filenamePadding = -1 |
| IterationEncoding | m_iterationEncoding {} |
| Format | m_format |
| StepStatus | m_stepStatus = StepStatus::NoStep |
| Whether a step is currently active for this iteration. More... | |
| bool | m_parseLazily = false |
| bool | m_lastFlushSuccessful = true |
| Public Attributes inherited from openPMD::internal::AttributableData | |
| Writable | m_writable |
| Protected Types inherited from openPMD::AttributableInterface | |
| enum | ReadMode { IgnoreExisting, OverrideExisting, FullyReread } |
| Protected Member Functions inherited from openPMD::SeriesInterface | |
| SeriesInterface (internal::SeriesData *, internal::AttributableData *) | |
| Protected Member Functions inherited from openPMD::AttributableInterface | |
| AttributableInterface (internal::AttributableData *) | |
| template<typename T > | |
| AttributableInterface (T *attri) | |
| const internal::SeriesInternal & | retrieveSeries () const |
| internal::SeriesInternal & | retrieveSeries () |
| void | seriesFlush (FlushLevel) |
| void | flushAttributes () |
| void | readAttributes (ReadMode) |
| template<typename T > | |
| T | readFloatingpoint (std::string const &key) const |
| Retrieve the value of a floating point Attribute of user-defined precision with ensured type-safety. More... | |
| template<typename T > | |
| std::vector< T > | readVectorFloatingpoint (std::string const &key) const |
| Retrieve a vector of values of a floating point Attributes of user-defined precision with ensured type-safety. More... | |
| AbstractIOHandler * | IOHandler () |
| const AbstractIOHandler * | IOHandler () const |
| Writable *& | parent () |
| const Writable * | parent () const |
| Writable & | writable () |
| const Writable & | writable () const |
| internal::AttributableData & | get () |
| const internal::AttributableData & | get () const |
| bool | dirty () const |
| bool & | dirty () |
| bool | written () const |
| bool & | written () |
| const Iteration & | containingIteration () const |
| Returns the corresponding Iteration. More... | |
| Iteration & | containingIteration () |
| Protected Attributes inherited from openPMD::AttributableInterface | |
| internal::AttributableData * | m_attri = nullptr |
The documentation for this class was generated from the following files:
- /tmp/tmp.7iNmvGSbic/openPMD-api/include/openPMD/Series.hpp
- /tmp/tmp.7iNmvGSbic/openPMD-api/src/Series.cpp
