Implementation for the root level of the openPMD hierarchy. More...

#include <Series.hpp>

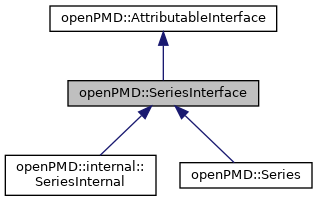

Inheritance diagram for openPMD::SeriesInterface:

[legend]

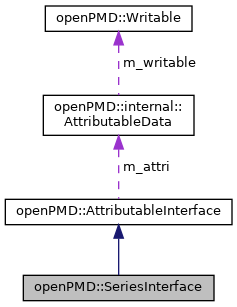

Collaboration diagram for openPMD::SeriesInterface:

[legend]

Classes
struct	ParsedInput

Public Member Functions
std::string	openPMD () const

SeriesInterface &	setOpenPMD (std::string const &openPMD)
	Set the version of the enforced openPMD standard. More...

uint32_t	openPMDextension () const

SeriesInterface &	setOpenPMDextension (uint32_t openPMDextension)
	Set a 32-bit mask of applied extensions to the openPMD standard. More...

std::string	basePath () const

SeriesInterface &	setBasePath (std::string const &basePath)
	Set the common prefix for all data sets and sub-groups of a specific iteration. More...

std::string	meshesPath () const

SeriesInterface &	setMeshesPath (std::string const &meshesPath)
	Set the path to mesh records, relative(!) to `basePath`. More...

std::string	particlesPath () const

SeriesInterface &	setParticlesPath (std::string const &particlesPath)
	Set the path to groups for each particle species, relative(!) to `basePath`. More...

std::string	author () const

SeriesInterface &	setAuthor (std::string const &author)
	Indicate the author and contact for the information in the file. More...

std::string	software () const

SeriesInterface &	setSoftware (std::string const &newName, std::string const &newVersion=std::string("unspecified"))
	Indicate the software/code/simulation that created the file. More...

std::string	softwareVersion () const

SeriesInterface &	setSoftwareVersion (std::string const &softwareVersion)
	Indicate the version of the software/code/simulation that created the file. More...

std::string	date () const

SeriesInterface &	setDate (std::string const &date)
	Indicate the date of creation. More...

std::string	softwareDependencies () const

SeriesInterface &	setSoftwareDependencies (std::string const &newSoftwareDependencies)
	Indicate dependencies of software that were used to create the file. More...

std::string	machine () const

SeriesInterface &	setMachine (std::string const &newMachine)
	Indicate the machine or relevant hardware that created the file. More...

IterationEncoding	iterationEncoding () const

SeriesInterface &	setIterationEncoding (IterationEncoding iterationEncoding)
	Set the encoding style for multiple iterations in this series. More...

std::string	iterationFormat () const

SeriesInterface &	setIterationFormat (std::string const &iterationFormat)
	Set a pattern describing how to access single iterations in the raw file. More...

std::string	name () const

SeriesInterface &	setName (std::string const &name)
	Set the pattern for file names. More...

std::string	backend () const
	The currently used backend. More...

void	flush ()
	Execute all required remaining IO operations to write or read data.

Public Member Functions inherited from openPMD::AttributableInterface
Attribute	getAttribute (std::string const &key) const
	Retrieve value of Attribute stored with provided key. More...

bool	deleteAttribute (std::string const &key)
	Remove Attribute of provided value both logically and physically. More...

std::vector< std::string >	attributes () const
	List all currently stored Attributes' keys. More...

size_t	numAttributes () const
	Count all currently stored Attributes. More...

bool	containsAttribute (std::string const &key) const
	Check whether am Attribute with a given key exists. More...

std::string	comment () const
	Retrieve a user-supplied comment associated with the object. More...

AttributableInterface &	setComment (std::string const &comment)
	Populate Attribute corresponding to a comment with the user-supplied comment. More...

void	seriesFlush ()
	Flush the corresponding Series object. More...

MyPath	myPath () const
	The path to this object within its containing Series. More...

template<typename T >
bool	setAttribute (std::string const &key, T value)
	Populate Attribute of provided name with provided value. More...

bool	setAttribute (std::string const &key, char const value[])

Protected Member Functions
	SeriesInterface (internal::SeriesData , internal::AttributableData )

Protected Member Functions inherited from openPMD::AttributableInterface
	AttributableInterface (internal::AttributableData *)

template<typename T >
	AttributableInterface (T *attri)

const internal::SeriesInternal &	retrieveSeries () const

internal::SeriesInternal &	retrieveSeries ()

void	seriesFlush (FlushLevel)

void	flushAttributes ()

void	readAttributes (ReadMode)

template<typename T >
T	readFloatingpoint (std::string const &key) const
	Retrieve the value of a floating point Attribute of user-defined precision with ensured type-safety. More...

template<typename T >
std::vector< T >	readVectorFloatingpoint (std::string const &key) const
	Retrieve a vector of values of a floating point Attributes of user-defined precision with ensured type-safety. More...

AbstractIOHandler *	IOHandler ()

const AbstractIOHandler *	IOHandler () const

Writable *&	parent ()

const Writable *	parent () const

Writable &	writable ()

const Writable &	writable () const

internal::AttributableData &	get ()

const internal::AttributableData &	get () const

bool	dirty () const

bool &	dirty ()

bool	written () const

bool &	written ()

const Iteration &	containingIteration () const
	Returns the corresponding Iteration. More...

Iteration &	containingIteration ()

Friends
class	AttributableInterface

class	Iteration

class	Writable

class	SeriesIterator

class	internal::SeriesInternal

class	Series

class	WriteIterations

Additional Inherited Members
Protected Types inherited from openPMD::AttributableInterface
enum	ReadMode { IgnoreExisting, OverrideExisting, FullyReread }

Protected Attributes inherited from openPMD::AttributableInterface
internal::AttributableData *	m_attri = nullptr

Detailed Description

Implementation for the root level of the openPMD hierarchy.

Entry point and common link between all iterations of particle and mesh data.

See also: https://github.com/openPMD/openPMD-standard/blob/latest/STANDARD.md#hierarchy-of-the-data-file; https://github.com/openPMD/openPMD-standard/blob/latest/STANDARD.md#iterations-and-time-series

Member Function Documentation

◆ author()

std::string openPMD::SeriesInterface::author ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String indicating author and contact for the information in the file.

◆ backend()

std::string openPMD::SeriesInterface::backend ( ) const

The currently used backend.

See also: AbstractIOHandler::backendName()

Returns: String of a pattern for data backend.

◆ basePath()

std::string openPMD::SeriesInterface::basePath ( ) const

Returns: String representing the common prefix for all data sets and sub-groups of a specific iteration.

◆ date()

std::string openPMD::SeriesInterface::date ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String indicating date of creation.

◆ iterationEncoding()

IterationEncoding openPMD::SeriesInterface::iterationEncoding ( ) const

Returns: Current encoding style for multiple iterations in this series.

◆ iterationFormat()

std::string openPMD::SeriesInterface::iterationFormat ( ) const

Returns: String describing a pattern describing how to access single iterations in the raw file.

◆ machine()

std::string openPMD::SeriesInterface::machine ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String indicating the machine or relevant hardware that created the file.

◆ meshesPath()

std::string openPMD::SeriesInterface::meshesPath ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String representing the path to mesh records, relative(!) to basePath.

◆ name()

std::string openPMD::SeriesInterface::name ( ) const

Returns: String of a pattern for file names.

◆ openPMD()

std::string openPMD::SeriesInterface::openPMD ( ) const

Returns: String representing the current enforced version of the openPMD standard.

◆ openPMDextension()

uint32_t openPMD::SeriesInterface::openPMDextension ( ) const

Returns: 32-bit mask of applied extensions to the openPMD standard.

◆ particlesPath()

std::string openPMD::SeriesInterface::particlesPath ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String representing the path to particle species, relative(!) to basePath.

◆ setAuthor()

SeriesInterface & openPMD::SeriesInterface::setAuthor ( std::string const & author )

Indicate the author and contact for the information in the file.

Parameters

author String indicating author and contact for the information in the file.

Returns: Reference to modified series.

◆ setBasePath()

SeriesInterface & openPMD::SeriesInterface::setBasePath ( std::string const & basePath )

Set the common prefix for all data sets and sub-groups of a specific iteration.

Parameters

basePath String of the common prefix for all data sets and sub-groups of a specific iteration.

Returns: Reference to modified series.

◆ setDate()

SeriesInterface & openPMD::SeriesInterface::setDate ( std::string const & date )

Indicate the date of creation.

Parameters

date	String indicating the date of creation.

Returns: Reference to modified series.

◆ setIterationEncoding()

SeriesInterface & openPMD::SeriesInterface::setIterationEncoding ( IterationEncoding iterationEncoding )

Set the encoding style for multiple iterations in this series.

A preview on the openPMD 2.0 variable-based iteration encoding can be activated with this call. Making full use of the variable-based iteration encoding requires (1) explicit support by the backend (available only in ADIOS2) and (2) use of the openPMD streaming API. In other backends and without the streaming API, only one iteration/snapshot may be written in the variable-based encoding, making this encoding a good choice for single-snapshot data dumps.

Parameters

iterationEncoding Desired encoding style for multiple iterations in this series.

Returns: Reference to modified series.

◆ setIterationFormat()

SeriesInterface & openPMD::SeriesInterface::setIterationFormat ( std::string const & iterationFormat )

Set a pattern describing how to access single iterations in the raw file.

Parameters

iterationFormat String with the iteration regex %T defining either the series of files (fileBased) or the series of groups within a single file (groupBased) that allows to extract the iteration from it. For fileBased formats the iteration must be included in the file name. The format depends on the selected iterationEncoding method.

Returns: Reference to modified series.

◆ setMachine()

SeriesInterface & openPMD::SeriesInterface::setMachine ( std::string const & newMachine )

Indicate the machine or relevant hardware that created the file.

Parameters

newMachine String indicating the machine or relevant hardware that created the file (semicolon-separated list if needed)..

Returns: Reference to modified series.

◆ setMeshesPath()

SeriesInterface & openPMD::SeriesInterface::setMeshesPath ( std::string const & meshesPath )

Set the path to mesh records, relative(!) to basePath.

Parameters

meshesPath String of the path to mesh records, relative(!) to basePath.

Returns: Reference to modified series.

◆ setName()

SeriesInterface & openPMD::SeriesInterface::setName ( std::string const & name )

Set the pattern for file names.

Parameters

name	String of the pattern for file names. Must include iteration regex `%T` for fileBased data.

Returns: Reference to modified series.

◆ setOpenPMD()

SeriesInterface & openPMD::SeriesInterface::setOpenPMD ( std::string const & openPMD )

Set the version of the enforced openPMD standard.

Parameters

openPMD String MAJOR.MINOR.REVISION of the desired version of the openPMD standard.

Returns: Reference to modified series.

◆ setOpenPMDextension()

SeriesInterface & openPMD::SeriesInterface::setOpenPMDextension ( uint32_t openPMDextension )

Set a 32-bit mask of applied extensions to the openPMD standard.

Parameters

openPMDextension Unsigned 32-bit integer used as a bit-mask of applied extensions.

Returns: Reference to modified series.

◆ setParticlesPath()

SeriesInterface & openPMD::SeriesInterface::setParticlesPath ( std::string const & particlesPath )

Set the path to groups for each particle species, relative(!) to basePath.

Parameters

particlesPath String of the path to groups for each particle species, relative(!) to basePath.

Returns: Reference to modified series.

◆ setSoftware()

SeriesInterface & openPMD::SeriesInterface::setSoftware	(	std::string const &	newName,
		std::string const &	newVersion = `std::string("unspecified")`
	)

Indicate the software/code/simulation that created the file.

Parameters

newName	String indicating the software/code/simulation that created the file.
newVersion	String indicating the version of the software/code/simulation that created the file.

Returns: Reference to modified series.

◆ setSoftwareDependencies()

SeriesInterface & openPMD::SeriesInterface::setSoftwareDependencies ( std::string const & newSoftwareDependencies )

Indicate dependencies of software that were used to create the file.

Parameters

newSoftwareDependencies String indicating dependencies of software that were used to create the file (semicolon-separated list if needed).

Returns: Reference to modified series.

◆ setSoftwareVersion()

SeriesInterface & openPMD::SeriesInterface::setSoftwareVersion ( std::string const & softwareVersion )

Indicate the version of the software/code/simulation that created the file.

Deprecated:: Set the version with the second argument of setSoftware()

Parameters

softwareVersion String indicating the version of the software/code/simulation that created the file.

Returns: Reference to modified series.

◆ software()

std::string openPMD::SeriesInterface::software ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String indicating the software/code/simulation that created the file;

◆ softwareDependencies()

std::string openPMD::SeriesInterface::softwareDependencies ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String indicating dependencies of software that were used to create the file.

◆ softwareVersion()

std::string openPMD::SeriesInterface::softwareVersion ( ) const

Exceptions

no_such_attribute_error If optional attribute is not present.

Returns: String indicating the version of the software/code/simulation that created the file.

The documentation for this class was generated from the following files:

/tmp/tmp.7iNmvGSbic/openPMD-api/include/openPMD/Series.hpp
/tmp/tmp.7iNmvGSbic/openPMD-api/src/Series.cpp

Classes

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ author()

◆ backend()

◆ basePath()

◆ date()

◆ iterationEncoding()

◆ iterationFormat()

◆ machine()

◆ meshesPath()

◆ name()

◆ openPMD()

◆ openPMDextension()

◆ particlesPath()

◆ setAuthor()

◆ setBasePath()

◆ setDate()

◆ setIterationEncoding()

◆ setIterationFormat()

◆ setMachine()

◆ setMeshesPath()

◆ setName()

◆ setOpenPMD()

◆ setOpenPMDextension()

◆ setParticlesPath()

◆ setSoftware()

◆ setSoftwareDependencies()

◆ setSoftwareVersion()

◆ software()

◆ softwareDependencies()

◆ softwareVersion()
