#include <PatchRecordComponent.hpp>

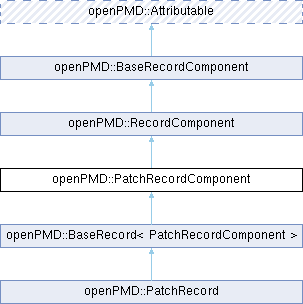

Inheritance diagram for openPMD::PatchRecordComponent:

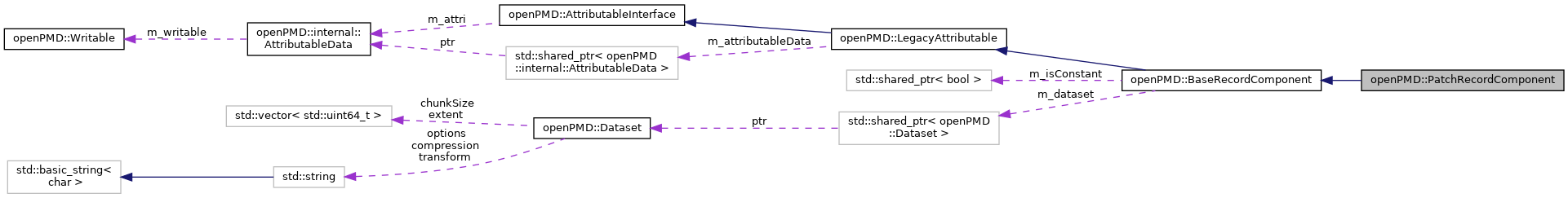

Collaboration diagram for openPMD::PatchRecordComponent:
Public Member Functions | |
| PatchRecordComponent & | setUnitSI (double) |
| PatchRecordComponent & | resetDataset (Dataset) |
| uint8_t | getDimensionality () const |
| Extent | getExtent () const |
| template<typename T > | |
| std::shared_ptr< T > | load () |
| template<typename T > | |
| void | load (std::shared_ptr< T >) |
| template<typename T > | |
| void | store (uint64_t idx, T) |
 Public Member Functions inherited from openPMD::BaseRecordComponent | |
| double | unitSI () const |
| BaseRecordComponent & | resetDatatype (Datatype) |
| Datatype | getDatatype () const |
| bool | constant () const |
| Returns true if this is a constant record component. More... | |
| ChunkTable | availableChunks () |
| Get data chunks that are available to be loaded from the backend. More... | |
| Public Member Functions inherited from openPMD::AttributableInterface | |
| Attribute | getAttribute (std::string const &key) const |
| Retrieve value of Attribute stored with provided key. More... | |
| bool | deleteAttribute (std::string const &key) |
| Remove Attribute of provided value both logically and physically. More... | |
| std::vector< std::string > | attributes () const |
| List all currently stored Attributes' keys. More... | |
| size_t | numAttributes () const |
| Count all currently stored Attributes. More... | |
| bool | containsAttribute (std::string const &key) const |
| Check whether am Attribute with a given key exists. More... | |
| std::string | comment () const |
| Retrieve a user-supplied comment associated with the object. More... | |
| AttributableInterface & | setComment (std::string const &comment) |
| Populate Attribute corresponding to a comment with the user-supplied comment. More... | |
| void | seriesFlush () |
| Flush the corresponding Series object. More... | |
| MyPath | myPath () const |
| The path to this object within its containing Series. More... | |
| template<typename T > | |
| bool | setAttribute (std::string const &key, T value) |
| Populate Attribute of provided name with provided value. More... | |
| bool | setAttribute (std::string const &key, char const value[]) |
Friends | |
| template<typename T , typename T_key , typename T_container > | |
| class | Container |
| template<typename > | |
| class | BaseRecord |
| class | ParticlePatches |
| class | PatchRecord |
Additional Inherited Members | |
| Protected Types inherited from openPMD::AttributableInterface | |
| enum | ReadMode { IgnoreExisting, OverrideExisting, FullyReread } |
| Protected Member Functions inherited from openPMD::AttributableInterface | |
| AttributableInterface (internal::AttributableData *) | |
| template<typename T > | |
| AttributableInterface (T *attri) | |
| const internal::SeriesInternal & | retrieveSeries () const |
| internal::SeriesInternal & | retrieveSeries () |
| void | seriesFlush (FlushLevel) |
| void | flushAttributes () |
| void | readAttributes (ReadMode) |
| template<typename T > | |
| T | readFloatingpoint (std::string const &key) const |
| Retrieve the value of a floating point Attribute of user-defined precision with ensured type-safety. More... | |
| template<typename T > | |
| std::vector< T > | readVectorFloatingpoint (std::string const &key) const |
| Retrieve a vector of values of a floating point Attributes of user-defined precision with ensured type-safety. More... | |
| AbstractIOHandler * | IOHandler () |
| const AbstractIOHandler * | IOHandler () const |
| Writable *& | parent () |
| const Writable * | parent () const |
| Writable & | writable () |
| const Writable & | writable () const |
| internal::AttributableData & | get () |
| const internal::AttributableData & | get () const |
| bool | dirty () const |
| bool & | dirty () |
| bool | written () const |
| bool & | written () |
| const Iteration & | containingIteration () const |
| Returns the corresponding Iteration. More... | |
| Iteration & | containingIteration () |
| Protected Attributes inherited from openPMD::BaseRecordComponent | |
| std::shared_ptr< Dataset > | m_dataset |
| std::shared_ptr< bool > | m_isConstant |
| Protected Attributes inherited from openPMD::LegacyAttributable | |
| std::shared_ptr< internal::AttributableData > | m_attributableData |
| Protected Attributes inherited from openPMD::AttributableInterface | |
| internal::AttributableData * | m_attri = nullptr |
Detailed Description
- Todo:
- add support for constant patch record components
Member Function Documentation
◆ load()
template<typename T >
|
inline |
- Todo:
- add support for constant patch record components
The documentation for this class was generated from the following files:
- /tmp/tmp.7iNmvGSbic/openPMD-api/include/openPMD/backend/PatchRecordComponent.hpp
- /tmp/tmp.7iNmvGSbic/openPMD-api/src/backend/PatchRecordComponent.cpp
