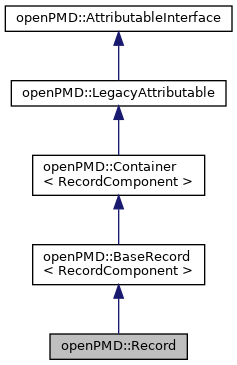

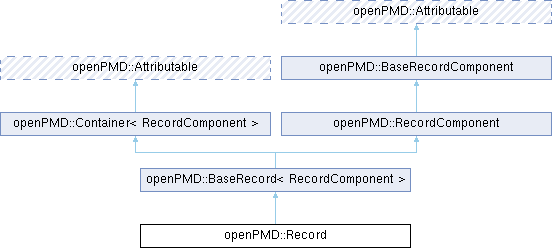

Inheritance diagram for openPMD::Record:

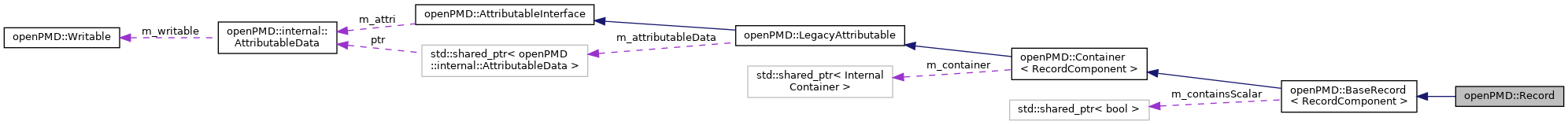

Collaboration diagram for openPMD::Record:
Public Member Functions | |
| Record (Record const &)=default | |
| Record & | operator= (Record const &)=default |
| Record & | setUnitDimension (std::map< UnitDimension, double > const &) |
| template<typename T > | |
| T | timeOffset () const |
| template<typename T > | |
| Record & | setTimeOffset (T) |
 Public Member Functions inherited from openPMD::BaseRecord< RecordComponent > | |
| BaseRecord (BaseRecord const &b) | |
| BaseRecord & | operator= (BaseRecord const &b) |
| mapped_type & | operator[] (key_type const &key) override |
| mapped_type & | operator[] (key_type &&key) override |
| BaseRecord< RecordComponent >::mapped_type & | operator[] (std::string &&key) |
| size_type | erase (key_type const &key) override |
| iterator | erase (iterator res) override |
| std::array< double, 7 > | unitDimension () const |
| Return the physical dimension (quantity) of a record. More... | |
| bool | scalar () const |
| Returns true if this record only contains a single component. More... | |
| Public Member Functions inherited from openPMD::Container< RecordComponent > | |
| Container (Container const &)=default | |
| iterator | begin () noexcept |
| const_iterator | begin () const noexcept |
| const_iterator | cbegin () const noexcept |
| iterator | end () noexcept |
| const_iterator | end () const noexcept |
| const_iterator | cend () const noexcept |
| bool | empty () const noexcept |
| size_type | size () const noexcept |
| void | clear () |
| Remove all objects from the container and (if written) from disk. More... | |
| std::pair< iterator, bool > | insert (value_type const &value) |
| std::pair< iterator, bool > | insert (P &&value) |
| iterator | insert (const_iterator hint, value_type const &value) |
| iterator | insert (const_iterator hint, P &&value) |
| void | insert (InputIt first, InputIt last) |
| void | insert (std::initializer_list< value_type > ilist) |
| void | swap (Container &other) |
| mapped_type & | at (key_type const &key) |
| mapped_type const & | at (key_type const &key) const |
| virtual mapped_type & | operator[] (key_type const &key) |
| Access the value that is mapped to a key equivalent to key, creating it if such key does not exist already. More... | |
| virtual mapped_type & | operator[] (key_type &&key) |
| Access the value that is mapped to a key equivalent to key, creating it if such key does not exist already. More... | |
| iterator | find (key_type const &key) |
| const_iterator | find (key_type const &key) const |
| size_type | count (key_type const &key) const |
| This returns either 1 if the key is found in the container of 0 if not. More... | |
| bool | contains (key_type const &key) const |
| Checks if there is an element with a key equivalent to an exiting key in the container. More... | |
| virtual size_type | erase (key_type const &key) |
| Remove a single element from the container and (if written) from disk. More... | |
| virtual iterator | erase (iterator res) |
| auto | emplace (Args &&... args) -> decltype(InternalContainer().emplace(std::forward< Args >(args)...)) |
| Public Member Functions inherited from openPMD::AttributableInterface | |
| Attribute | getAttribute (std::string const &key) const |
| Retrieve value of Attribute stored with provided key. More... | |
| bool | deleteAttribute (std::string const &key) |
| Remove Attribute of provided value both logically and physically. More... | |
| std::vector< std::string > | attributes () const |
| List all currently stored Attributes' keys. More... | |
| size_t | numAttributes () const |
| Count all currently stored Attributes. More... | |
| bool | containsAttribute (std::string const &key) const |
| Check whether am Attribute with a given key exists. More... | |
| std::string | comment () const |
| Retrieve a user-supplied comment associated with the object. More... | |
| AttributableInterface & | setComment (std::string const &comment) |
| Populate Attribute corresponding to a comment with the user-supplied comment. More... | |
| void | seriesFlush () |
| Flush the corresponding Series object. More... | |
| MyPath | myPath () const |
| The path to this object within its containing Series. More... | |
| template<typename T > | |
| bool | setAttribute (std::string const &key, T value) |
| Populate Attribute of provided name with provided value. More... | |
| bool | setAttribute (std::string const &key, char const value[]) |
Friends | |
| class | Container< Record > |
| class | Iteration |
| class | ParticleSpecies |
Additional Inherited Members | |
| Public Types inherited from openPMD::BaseRecord< RecordComponent > | |
| using | key_type = typename Container< RecordComponent >::key_type |
| using | mapped_type = typename Container< RecordComponent >::mapped_type |
| using | value_type = typename Container< RecordComponent >::value_type |
| using | size_type = typename Container< RecordComponent >::size_type |
| using | difference_type = typename Container< RecordComponent >::difference_type |
| using | allocator_type = typename Container< RecordComponent >::allocator_type |
| using | reference = typename Container< RecordComponent >::reference |
| using | const_reference = typename Container< RecordComponent >::const_reference |
| using | pointer = typename Container< RecordComponent >::pointer |
| using | const_pointer = typename Container< RecordComponent >::const_pointer |
| using | iterator = typename Container< RecordComponent >::iterator |
| using | const_iterator = typename Container< RecordComponent >::const_iterator |
| Public Types inherited from openPMD::Container< RecordComponent > | |
| using | key_type = typename InternalContainer::key_type |
| using | mapped_type = typename InternalContainer::mapped_type |
| using | value_type = typename InternalContainer::value_type |
| using | size_type = typename InternalContainer::size_type |
| using | difference_type = typename InternalContainer::difference_type |
| using | allocator_type = typename InternalContainer::allocator_type |
| using | reference = typename InternalContainer::reference |
| using | const_reference = typename InternalContainer::const_reference |
| using | pointer = typename InternalContainer::pointer |
| using | const_pointer = typename InternalContainer::const_pointer |
| using | iterator = typename InternalContainer::iterator |
| using | const_iterator = typename InternalContainer::const_iterator |
| Protected Types inherited from openPMD::Container< RecordComponent > | |
| using | InternalContainer = std::map< std::string, RecordComponent > |
| Protected Types inherited from openPMD::AttributableInterface | |
| enum | ReadMode { IgnoreExisting, OverrideExisting, FullyReread } |
| Protected Member Functions inherited from openPMD::BaseRecord< RecordComponent > | |
| void | readBase () |
| Protected Member Functions inherited from openPMD::Container< RecordComponent > | |
| void | clear_unchecked () |
| EraseStaleEntries | eraseStaleEntries () |
| Protected Member Functions inherited from openPMD::AttributableInterface | |
| AttributableInterface (internal::AttributableData *) | |
| template<typename T > | |
| AttributableInterface (T *attri) | |
| const internal::SeriesInternal & | retrieveSeries () const |
| internal::SeriesInternal & | retrieveSeries () |
| void | seriesFlush (FlushLevel) |
| void | flushAttributes () |
| void | readAttributes (ReadMode) |
| template<typename T > | |
| T | readFloatingpoint (std::string const &key) const |
| Retrieve the value of a floating point Attribute of user-defined precision with ensured type-safety. More... | |
| template<typename T > | |
| std::vector< T > | readVectorFloatingpoint (std::string const &key) const |
| Retrieve a vector of values of a floating point Attributes of user-defined precision with ensured type-safety. More... | |
| AbstractIOHandler * | IOHandler () |
| const AbstractIOHandler * | IOHandler () const |
| Writable *& | parent () |
| const Writable * | parent () const |
| Writable & | writable () |
| const Writable & | writable () const |
| internal::AttributableData & | get () |
| const internal::AttributableData & | get () const |
| bool | dirty () const |
| bool & | dirty () |
| bool | written () const |
| bool & | written () |
| const Iteration & | containingIteration () const |
| Returns the corresponding Iteration. More... | |
| Iteration & | containingIteration () |
| Protected Attributes inherited from openPMD::BaseRecord< RecordComponent > | |
| std::shared_ptr< bool > | m_containsScalar |
| Protected Attributes inherited from openPMD::Container< RecordComponent > | |
| std::shared_ptr< InternalContainer > | m_container |
| Protected Attributes inherited from openPMD::LegacyAttributable | |
| std::shared_ptr< internal::AttributableData > | m_attributableData |
| Protected Attributes inherited from openPMD::AttributableInterface | |
| internal::AttributableData * | m_attri = nullptr |
The documentation for this class was generated from the following files:
- /tmp/tmp.7iNmvGSbic/openPMD-api/include/openPMD/Record.hpp
- /tmp/tmp.7iNmvGSbic/openPMD-api/src/Record.cpp
