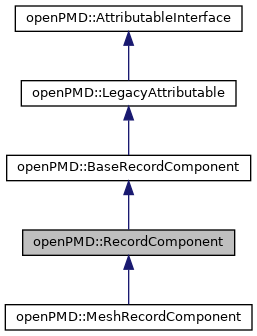

Inheritance diagram for openPMD::RecordComponent:

[legend]

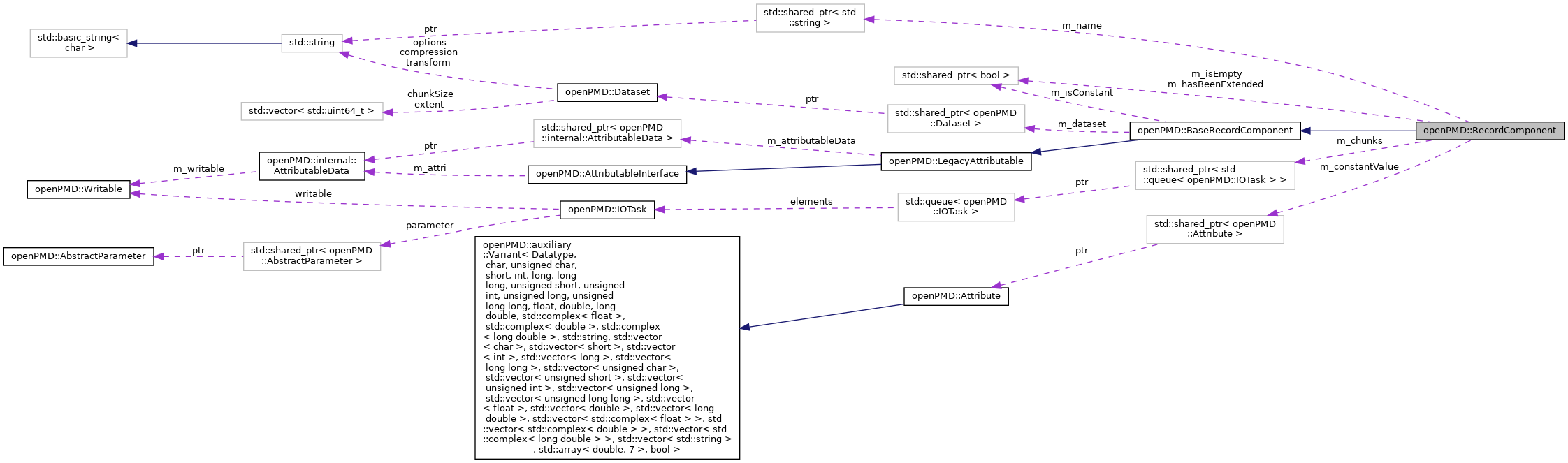

Collaboration diagram for openPMD::RecordComponent:

[legend]

Public Types
enum	Allocation { USER, API, AUTO }

Public Member Functions
RecordComponent &	setUnitSI (double)

RecordComponent &	resetDataset (Dataset)
	Declare the dataset's type and extent. More...

uint8_t	getDimensionality () const

Extent	getExtent () const

template<typename T >
RecordComponent &	makeConstant (T)
	Create a dataset with regular extent and constant value. More...

template<typename T >
RecordComponent &	makeEmpty (uint8_t dimensions)
	Create a dataset with zero extent in each dimension. More...

RecordComponent &	makeEmpty (Datatype dt, uint8_t dimensions)
	Non-template overload of RecordComponent::makeEmpty(). More...

bool	empty () const
	Returns true if this is an empty record component. More...

template<typename T >
std::shared_ptr< T >	loadChunk (Offset={ 0u }, Extent={ -1u })
	Load and allocate a chunk of data. More...

template<typename T >
void	loadChunk (std::shared_ptr< T >, Offset, Extent)
	Load a chunk of data into pre-allocated memory. More...

template<typename T >
void	storeChunk (std::shared_ptr< T >, Offset, Extent)

template<typename T_ContiguousContainer >
std::enable_if< traits::IsContiguousContainer< T_ContiguousContainer >::value >::type	storeChunk (T_ContiguousContainer &, Offset={0u}, Extent={-1u})

template<typename T , typename F >
DynamicMemoryView< T >	storeChunk (Offset, Extent, F &&createBuffer)
	Overload of storeChunk() that lets the openPMD API allocate a buffer. More...

template<typename T >
DynamicMemoryView< T >	storeChunk (Offset, Extent)
	Overload of span-based storeChunk() that uses operator new() to create a buffer.

Public Member Functions inherited from openPMD::BaseRecordComponent
double	unitSI () const

BaseRecordComponent &	resetDatatype (Datatype)

Datatype	getDatatype () const

bool	constant () const
	Returns true if this is a constant record component. More...

ChunkTable	availableChunks ()
	Get data chunks that are available to be loaded from the backend. More...

Public Member Functions inherited from openPMD::AttributableInterface
Attribute	getAttribute (std::string const &key) const
	Retrieve value of Attribute stored with provided key. More...

bool	deleteAttribute (std::string const &key)
	Remove Attribute of provided value both logically and physically. More...

std::vector< std::string >	attributes () const
	List all currently stored Attributes' keys. More...

size_t	numAttributes () const
	Count all currently stored Attributes. More...

bool	containsAttribute (std::string const &key) const
	Check whether am Attribute with a given key exists. More...

std::string	comment () const
	Retrieve a user-supplied comment associated with the object. More...

AttributableInterface &	setComment (std::string const &comment)
	Populate Attribute corresponding to a comment with the user-supplied comment. More...

void	seriesFlush ()
	Flush the corresponding Series object. More...

MyPath	myPath () const
	The path to this object within its containing Series. More...

template<typename T >
bool	setAttribute (std::string const &key, T value)
	Populate Attribute of provided name with provided value. More...

bool	setAttribute (std::string const &key, char const value[])

Static Public Attributes
static constexpr const char *const	SCALAR = "\vScalar"

Protected Member Functions
void	readBase ()

Protected Member Functions inherited from openPMD::AttributableInterface
	AttributableInterface (internal::AttributableData *)

template<typename T >
	AttributableInterface (T *attri)

const internal::SeriesInternal &	retrieveSeries () const

internal::SeriesInternal &	retrieveSeries ()

void	seriesFlush (FlushLevel)

void	flushAttributes ()

void	readAttributes (ReadMode)

template<typename T >
T	readFloatingpoint (std::string const &key) const
	Retrieve the value of a floating point Attribute of user-defined precision with ensured type-safety. More...

template<typename T >
std::vector< T >	readVectorFloatingpoint (std::string const &key) const
	Retrieve a vector of values of a floating point Attributes of user-defined precision with ensured type-safety. More...

AbstractIOHandler *	IOHandler ()

const AbstractIOHandler *	IOHandler () const

Writable *&	parent ()

const Writable *	parent () const

Writable &	writable ()

const Writable &	writable () const

internal::AttributableData &	get ()

const internal::AttributableData &	get () const

bool	dirty () const

bool &	dirty ()

bool	written () const

bool &	written ()

const Iteration &	containingIteration () const
	Returns the corresponding Iteration. More...

Iteration &	containingIteration ()

Protected Attributes
std::shared_ptr< std::queue< IOTask > >	m_chunks

std::shared_ptr< Attribute >	m_constantValue

std::shared_ptr< bool >	m_isEmpty = std::make_shared< bool >( false )

std::shared_ptr< bool >	m_hasBeenExtended

std::shared_ptr< std::string >	m_name = std::make_shared< std::string >()
	The same std::string that the parent class would pass as parameter to RecordComponent::flush(). More...

Protected Attributes inherited from openPMD::BaseRecordComponent
std::shared_ptr< Dataset >	m_dataset

std::shared_ptr< bool >	m_isConstant

Protected Attributes inherited from openPMD::LegacyAttributable
std::shared_ptr< internal::AttributableData >	m_attributableData

Protected Attributes inherited from openPMD::AttributableInterface
internal::AttributableData *	m_attri = nullptr

Friends
template<typename T , typename T_key , typename T_container >
class	Container

class	Iteration

class	ParticleSpecies

template<typename T_elem >
class	BaseRecord

class	Record

class	Mesh

template<typename >
class	DynamicMemoryView

Additional Inherited Members
Protected Types inherited from openPMD::AttributableInterface
enum	ReadMode { IgnoreExisting, OverrideExisting, FullyReread }

Member Function Documentation

◆ empty()

bool openPMD::RecordComponent::empty ( ) const

Returns true if this is an empty record component.

An empty record component has a defined dimensionality but zero extent and no value(s) stored in it.

Returns: true if an empty record component

◆ loadChunk() [1/2]

template<typename T >

std::shared_ptr< T > openPMD::RecordComponent::loadChunk	(	Offset	= `{ 0u }`,
		Extent	= `{ -1u }`
	)

Load and allocate a chunk of data.

Set offset to {0u} and extent to {-1u} for full selection.

If offset is non-zero and extent is {-1u} the leftover extent in the record component will be selected.

◆ loadChunk() [2/2]

template<typename T >

void openPMD::RecordComponent::loadChunk	(	std::shared_ptr< T >	,
		Offset	,
		Extent
	)

Load a chunk of data into pre-allocated memory.

shared_ptr for data must be pre-allocated, contiguous and large enough for extent

Set offset to {0u} and extent to {-1u} for full selection.

If offset is non-zero and extent is {-1u} the leftover extent in the record component will be selected.

◆ makeConstant()

template<typename T >

RecordComponent& openPMD::RecordComponent::makeConstant ( T )

Create a dataset with regular extent and constant value.

In a constant record component, the value for each date in its extent is the same. Implemented by storing only a constant value as meta-data.

Template Parameters

T	type of the stored value

Returns: A reference to this RecordComponent.

◆ makeEmpty() [1/2]

RecordComponent & openPMD::RecordComponent::makeEmpty	(	Datatype	dt,
		uint8_t	dimensions
	)

Non-template overload of RecordComponent::makeEmpty().

Uses the passed openPMD datatype to determine the template parameter.

Parameters

dt	The datatype of which to create an empty dataset.
dimensions	The dimensionality of the dataset.

Returns: RecordComponent&

◆ makeEmpty() [2/2]

template<typename T >

RecordComponent& openPMD::RecordComponent::makeEmpty ( uint8_t dimensions )

Create a dataset with zero extent in each dimension.

Implemented by creating a constant record component with a dummy value (default constructor of the respective datatype).

Parameters

dimensions The number of dimensions. Must be greater than zero.

Returns: A reference to this RecordComponent.

◆ resetDataset()

RecordComponent & openPMD::RecordComponent::resetDataset ( Dataset d )

Declare the dataset's type and extent.

Calling this again after flushing will require resizing the dataset. Support for this depends on the backend. Unsupported are:

Changing the datatype.
Shrinking any dimension's extent.
Changing the number of dimensions.

Backend support for resizing datasets:

JSON: Supported
ADIOS1: Unsupported
ADIOS2: Supported as of ADIOS2 2.7.0
HDF5: (Currently) unsupported. Will be probably supported as soon as chunking is supported in HDF5.

Returns: RecordComponent&

◆ storeChunk()

template<typename T , typename F >

DynamicMemoryView< T > openPMD::RecordComponent::storeChunk	(	Offset	,
		Extent	,
		F &&	createBuffer
	)

Overload of storeChunk() that lets the openPMD API allocate a buffer.

This may save memory if the openPMD backend in use is able to provide users a view into its own buffers, avoiding the need to allocate a new buffer.

Data can be written into the returned buffer until the next call to Series::flush() at which time the data will be read from.

In order to provide a view into backend buffers, this call must possibly create files and datasets in the backend, making it MPI-collective. In order to avoid this, calling Series::flush() prior to this is recommended to flush definitions.

Parameters

createBuffer If the backend in use has no special support for this operation, the openPMD API will fall back to creating a buffer, queuing it for writing and returning a view into that buffer to the user. The functor createBuffer will be called for this purpose. It consumes a length parameter of type size_t and should return a shared_ptr of type T to a buffer at least that length. In that case, using this API call is equivalent to (1) creating a shared pointer via createBuffer and (2) then using the regular storeChunk() API on it. If the backend supports it, the buffer is not read before the next flush point and becomes invalid afterwards.

Returns: View into a buffer that can be filled with data.

Member Data Documentation

◆ m_hasBeenExtended

std::shared_ptr< bool > openPMD::RecordComponent::m_hasBeenExtended

protected

Initial value:

=

std::make_shared< bool >( false )

◆ m_name

std::shared_ptr< std::string > openPMD::RecordComponent::m_name = std::make_shared< std::string >()

protected

The same std::string that the parent class would pass as parameter to RecordComponent::flush().

This is stored only upon RecordComponent::flush() if AbstractIOHandler::flushLevel is set to FlushLevel::SkeletonOnly (for use by the Span<T>-based overload of RecordComponent::storeChunk()).

Todo:: Merge functionality with ownKeyInParent?

The documentation for this class was generated from the following files:

/tmp/tmp.7iNmvGSbic/openPMD-api/include/openPMD/RecordComponent.hpp
/tmp/tmp.7iNmvGSbic/openPMD-api/src/RecordComponent.cpp
