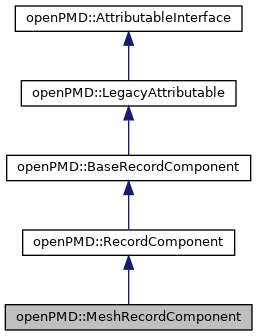

Inheritance diagram for openPMD::MeshRecordComponent:
Collaboration diagram for openPMD::MeshRecordComponent:
Public Member Functions | |
| template<typename T > | |
| std::vector< T > | position () const |
| Position on an element. More... | |
| template<typename T > | |
| MeshRecordComponent & | setPosition (std::vector< T > pos) |
| Position on an element. More... | |
| template<typename T > | |
| MeshRecordComponent & | makeConstant (T) |
| Create a dataset with regular extent and constant value. More... | |
 Public Member Functions inherited from openPMD::RecordComponent | |
| RecordComponent & | setUnitSI (double) |
| RecordComponent & | resetDataset (Dataset) |
| Declare the dataset's type and extent. More... | |
| uint8_t | getDimensionality () const |
| Extent | getExtent () const |
| template<typename T > | |
| RecordComponent & | makeConstant (T) |
| Create a dataset with regular extent and constant value. More... | |
| template<typename T > | |
| RecordComponent & | makeEmpty (uint8_t dimensions) |
| Create a dataset with zero extent in each dimension. More... | |
| RecordComponent & | makeEmpty (Datatype dt, uint8_t dimensions) |
| Non-template overload of RecordComponent::makeEmpty(). More... | |
| bool | empty () const |
| Returns true if this is an empty record component. More... | |
| template<typename T > | |
| std::shared_ptr< T > | loadChunk (Offset={ 0u }, Extent={ -1u }) |
| Load and allocate a chunk of data. More... | |
| template<typename T > | |
| void | loadChunk (std::shared_ptr< T >, Offset, Extent) |
| Load a chunk of data into pre-allocated memory. More... | |
| template<typename T > | |
| void | storeChunk (std::shared_ptr< T >, Offset, Extent) |
| template<typename T_ContiguousContainer > | |
| std::enable_if< traits::IsContiguousContainer< T_ContiguousContainer >::value >::type | storeChunk (T_ContiguousContainer &, Offset={0u}, Extent={-1u}) |
| template<typename T , typename F > | |
| DynamicMemoryView< T > | storeChunk (Offset, Extent, F &&createBuffer) |
| Overload of storeChunk() that lets the openPMD API allocate a buffer. More... | |
| template<typename T > | |
| DynamicMemoryView< T > | storeChunk (Offset, Extent) |
| Overload of span-based storeChunk() that uses operator new() to create a buffer. | |
| Public Member Functions inherited from openPMD::BaseRecordComponent | |
| double | unitSI () const |
| BaseRecordComponent & | resetDatatype (Datatype) |
| Datatype | getDatatype () const |
| bool | constant () const |
| Returns true if this is a constant record component. More... | |
| ChunkTable | availableChunks () |
| Get data chunks that are available to be loaded from the backend. More... | |
| Public Member Functions inherited from openPMD::AttributableInterface | |
| Attribute | getAttribute (std::string const &key) const |
| Retrieve value of Attribute stored with provided key. More... | |
| bool | deleteAttribute (std::string const &key) |
| Remove Attribute of provided value both logically and physically. More... | |
| std::vector< std::string > | attributes () const |
| List all currently stored Attributes' keys. More... | |
| size_t | numAttributes () const |
| Count all currently stored Attributes. More... | |
| bool | containsAttribute (std::string const &key) const |
| Check whether am Attribute with a given key exists. More... | |
| std::string | comment () const |
| Retrieve a user-supplied comment associated with the object. More... | |
| AttributableInterface & | setComment (std::string const &comment) |
| Populate Attribute corresponding to a comment with the user-supplied comment. More... | |
| void | seriesFlush () |
| Flush the corresponding Series object. More... | |
| MyPath | myPath () const |
| The path to this object within its containing Series. More... | |
| template<typename T > | |
| bool | setAttribute (std::string const &key, T value) |
| Populate Attribute of provided name with provided value. More... | |
| bool | setAttribute (std::string const &key, char const value[]) |
Friends | |
| template<typename T , typename T_key , typename T_container > | |
| class | Container |
| class | Mesh |
Additional Inherited Members | |
| Public Types inherited from openPMD::RecordComponent | |
| enum | Allocation { USER, API, AUTO } |
| Static Public Attributes inherited from openPMD::RecordComponent | |
| static constexpr const char *const | SCALAR = "\vScalar" |
| Protected Types inherited from openPMD::AttributableInterface | |
| enum | ReadMode { IgnoreExisting, OverrideExisting, FullyReread } |
| Protected Member Functions inherited from openPMD::RecordComponent | |
| void | readBase () |
| Protected Member Functions inherited from openPMD::AttributableInterface | |
| AttributableInterface (internal::AttributableData *) | |
| template<typename T > | |
| AttributableInterface (T *attri) | |
| const internal::SeriesInternal & | retrieveSeries () const |
| internal::SeriesInternal & | retrieveSeries () |
| void | seriesFlush (FlushLevel) |
| void | flushAttributes () |
| void | readAttributes (ReadMode) |
| template<typename T > | |
| T | readFloatingpoint (std::string const &key) const |
| Retrieve the value of a floating point Attribute of user-defined precision with ensured type-safety. More... | |
| template<typename T > | |
| std::vector< T > | readVectorFloatingpoint (std::string const &key) const |
| Retrieve a vector of values of a floating point Attributes of user-defined precision with ensured type-safety. More... | |
| AbstractIOHandler * | IOHandler () |
| const AbstractIOHandler * | IOHandler () const |
| Writable *& | parent () |
| const Writable * | parent () const |
| Writable & | writable () |
| const Writable & | writable () const |
| internal::AttributableData & | get () |
| const internal::AttributableData & | get () const |
| bool | dirty () const |
| bool & | dirty () |
| bool | written () const |
| bool & | written () |
| const Iteration & | containingIteration () const |
| Returns the corresponding Iteration. More... | |
| Iteration & | containingIteration () |
| Protected Attributes inherited from openPMD::RecordComponent | |
| std::shared_ptr< std::queue< IOTask > > | m_chunks |
| std::shared_ptr< Attribute > | m_constantValue |
| std::shared_ptr< bool > | m_isEmpty = std::make_shared< bool >( false ) |
| std::shared_ptr< bool > | m_hasBeenExtended |
| std::shared_ptr< std::string > | m_name = std::make_shared< std::string >() |
| The same std::string that the parent class would pass as parameter to RecordComponent::flush(). More... | |
| Protected Attributes inherited from openPMD::BaseRecordComponent | |
| std::shared_ptr< Dataset > | m_dataset |
| std::shared_ptr< bool > | m_isConstant |
| Protected Attributes inherited from openPMD::LegacyAttributable | |
| std::shared_ptr< internal::AttributableData > | m_attributableData |
| Protected Attributes inherited from openPMD::AttributableInterface | |
| internal::AttributableData * | m_attri = nullptr |
Member Function Documentation
◆ makeConstant()
template<typename T >
|
inline |
Create a dataset with regular extent and constant value.
In a constant record component, the value for each date in its extent is the same. Implemented by storing only a constant value as meta-data.
- See also
- RecordComponent::makeConstant
- Template Parameters
-
T type of the stored value
- Returns
- A reference to this RecordComponent.
◆ position()
template<typename T >
| std::vector< T > openPMD::MeshRecordComponent::position |
Position on an element.
Relative on an element (node/cell/voxel) of the mesh
- Returns
- relative position within range of [0.0:1.0)
◆ setPosition()
template<typename T >
| template MeshRecordComponent & openPMD::MeshRecordComponent::setPosition | ( | std::vector< T > | pos | ) |
Position on an element.
Relative on an element (node/cell/voxel) of the mesh
- Parameters
-
[in] pos relative position in range [0.0:1.0)
The documentation for this class was generated from the following files:
- /tmp/tmp.7iNmvGSbic/openPMD-api/include/openPMD/backend/MeshRecordComponent.hpp
- /tmp/tmp.7iNmvGSbic/openPMD-api/src/backend/MeshRecordComponent.cpp
